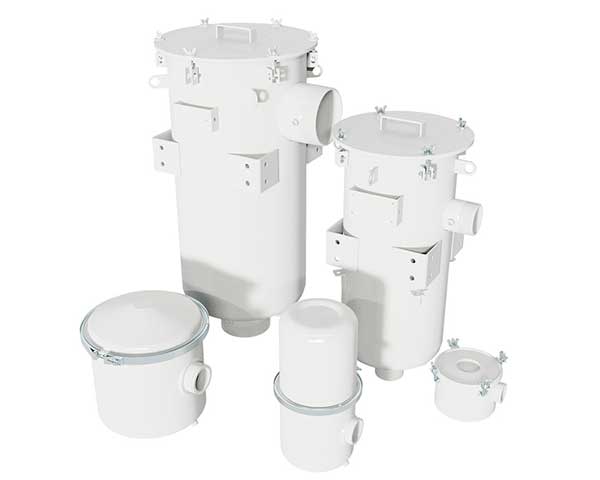

HDL系列從真空泵的排放中去除油霧和氣溶膠。
堅固的結構，合併的介質選件以及Solberg技術使HDL成為可靠的解決方案，
可保護工作區域免受對環境有害的油霧和煙霧。

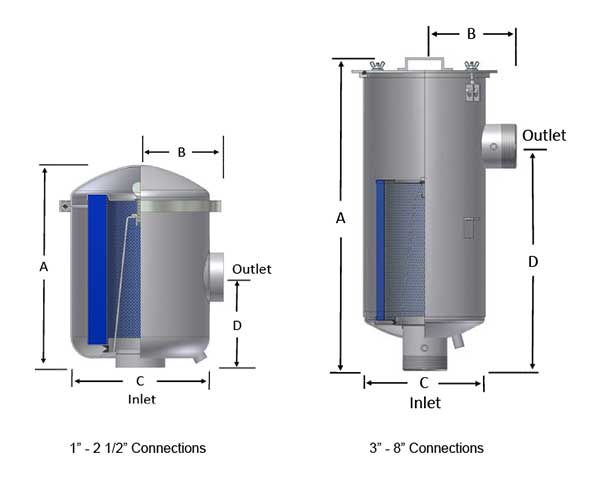

Model Number	Inlet connection size(IN.)	Outlet connection size(IN.)	Connection type	Flow(M3/HR)	Media	Micron rating	Replacement element
HDL-PSG848-126HC	1.25	1.25	BSPP	85	Coalescing	0.3	10
HDL-PSG848-151HC	1.5	1.5	BSPP	85	Coalescing	0.3	10
HDL-PSG850/1-201HC	2	2	BSPP	213	Coalescing	0.3	10
HDL-PSG860/1-201HC	2	2	BSPP	298	Coalescing	0.3	10
HDL-PSG244/2-251HC	2.5	2.5	BSPP	425	Coalescing	0.3	10
HDL-PSG850/1-251HC	2.5	2.5	BSPP	213	Coalescing	0.3	18P
HDL-PSG860/1-251HC	2.5	2.5	BSPP	340	Coalescing	0.3	18P
HDL-PSG344/2-301	3	3	BSPT	510	Coalescing	0.3	18P
HDL-PSG344/2-401	4	4	BSPT	849	Coalescing	0.3	18P
HDL-PSG474/2-501	5	5	BSPT	1359	Coalescing	0.3	18P
HDL-PSG474/2-601	6	6	BSPT	1868	Coalescing	0.3	234P
HDL-PSG476-DN200	DN200	DN200	PN10 FLG Pattern	3057	Coalescing	0.3	234P

Model Number	Inlet connection size(IN.)	Outlet connection size(IN.)	Connection type	Flow(M3/HR)	Media	Micron rating	Replacement element
HDL-PSG848-126HC	1.25	1.25	BSPP	85	Coalescing	0.3	10
HDL-PSG848-151HC	1.5	1.5	BSPP	85	Coalescing	0.3	10
HDL-PSG850/1-201HC	2	2	BSPP	213	Coalescing	0.3	10
HDL-PSG860/1-201HC	2	2	BSPP	298	Coalescing	0.3	10
HDL-PSG244/2-251HC	2.5	2.5	BSPP	425	Coalescing	0.3	10
HDL-PSG850/1-251HC	2.5	2.5	BSPP	213	Coalescing	0.3	18P
HDL-PSG860/1-251HC	2.5	2.5	BSPP	340	Coalescing	0.3	18P
HDL-PSG344/2-301	3	3	BSPT	510	Coalescing	0.3	18P
HDL-PSG344/2-401	4	4	BSPT	849	Coalescing	0.3	18P
HDL-PSG474/2-501	5	5	BSPT	1359	Coalescing	0.3	18P
HDL-PSG474/2-601	6	6	BSPT	1868	Coalescing	0.3	234P
HDL-PSG476-DN200	DN200	DN200	PN10 FLG Pattern	3057	Coalescing	0.3	234P
